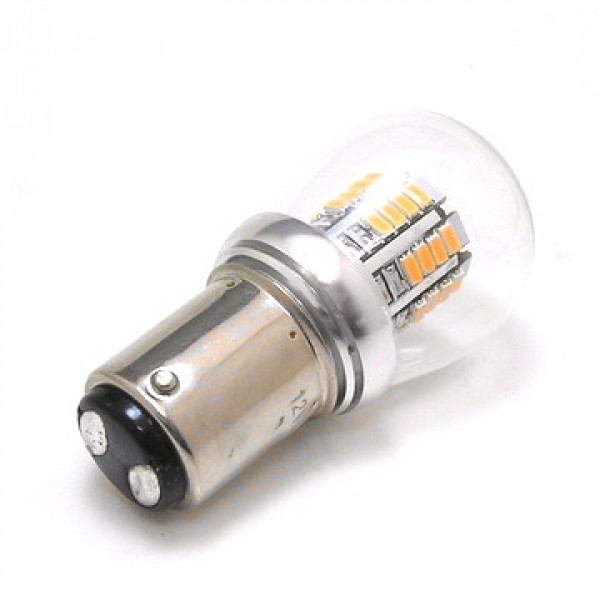

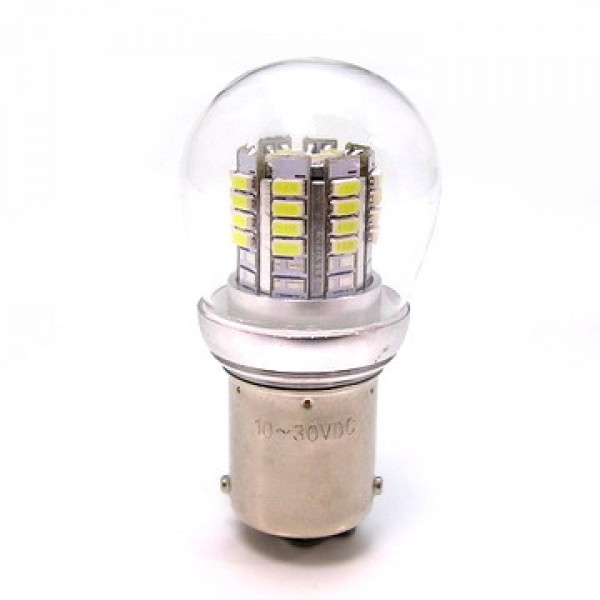

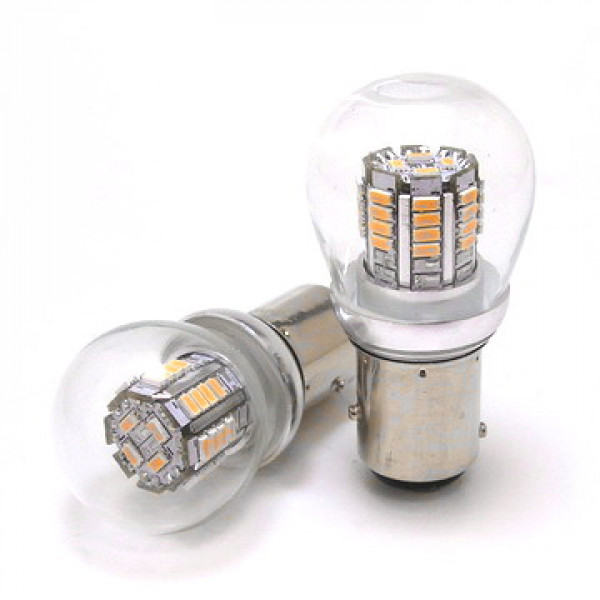

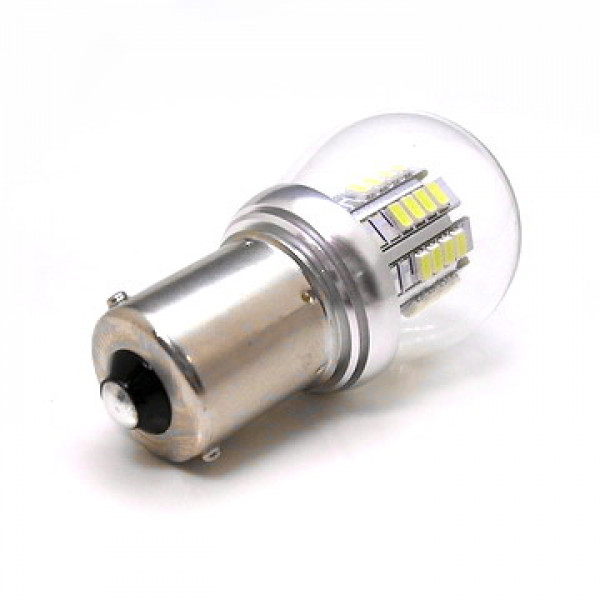

Marine LED Bulb w/Stock Cover - S8 S25mm 2.5W SMD LED - 15mm Bayonet

10-30VDC 12VDC 24VDC S8 S25mm with Cover 36 SMD LED 250 Lumen Waterproof, Replacement 15mm Bayonet Base Incandescent Navigation and Interior Light Bulbs.

Specifications Description
 Item No. LS25CBY-3136 LS25CBD-3136 LS25CBS-3136
 Bulb Base BAY15D BA15D BA15S
 Bulb Type Pygmy
 Bulb Size Ø25x52mm
 Voltage 10-30V DC
 Lighting Single
 Bi-Polarized Yes
 LED 36 LEDS
 LED Color Several Available
 Lumens 250Lm (White LED Color)
 Power  2.5W
 View Angle 360° (Tower)
 Cover Clear Glass
 Life Time 30000 Hours
 Waterproof Yes



*BAY15D (15mm diameter), Two Contacts, Offset Pins, Common for Navigation Lights.
*BA15D (15mm diameter), Two Contacts, Parallel Pins, Common for General Internal Lights.
*BA15S (15 mm diameter), Single Contact, Level Pins, Common on Bunk-side Lights.
*All specification/size listed are approximate, tolerance should be allowed.
*All specification and rating are subject to change without notice.
*ODM & OEM orders are welcome.
Bulb Base BAY15D / BA15D / BA15S
Voltage 10-30V DC
Bulb Shape Pygmy
